GSM GPS Antenna 850/ 900 / 1800 / 1900 / UMTS

Multi band roof antenna  ( GSM, DCS, PCS, AMPS, UMTS ) and GPS

The multi band antenna can be mounted on roof of the vehicle or on electrical cabinet (e.g. vending machine, passenger information system)



GSM GPS antenna general data

• Dimensions (mm): 52 dia. x 29
• Temperature range: -40^o C to +85^o C
• Coaxial cable GSM/UMTS: RG 174 3000 mm FME/F
• Coaxial cable: RG 174 3000 mm SMA/M
• Other cable length, cable type or coaxial connector upon request

Technical data celluar band

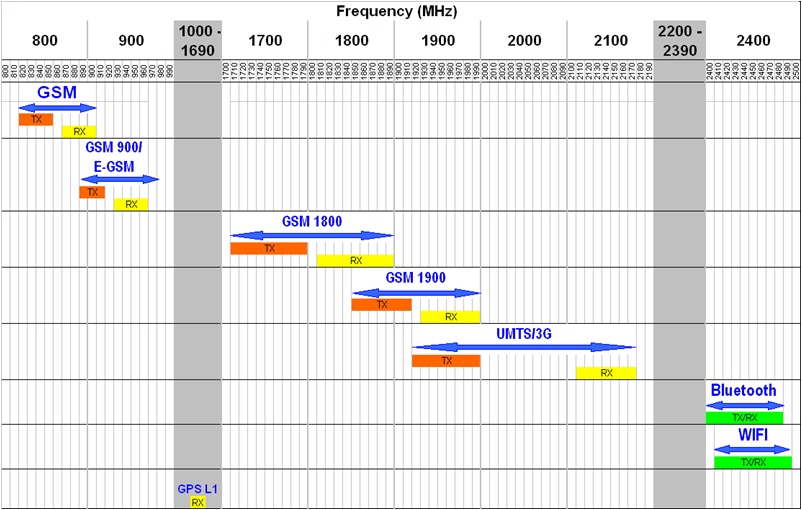

• Frequency range:
• GSM 850 / 900: 824 - 960 MHz
• GSM 1800: 1710 - 1880 MHz
• GSM 1900 / UMTS: 1920 - 2170 MHz
• Impedance: 50 Ohm
• VSWR: <2.0
• Gain: 2.2 dBi

Technical data GPS

• Center frequency: 1575.42MHz
• Band width: ± 1 MHz
• Impedance: 50 Ohm
• Current consumption: 19 ±2 mA (@ 3~5V DC)
• Power gain: 32dbi ± 2 dB
• Noise figure: 1.5 dBi
• Supply voltage: 3 - 5 Volts
• Temperature -40° C to +85° C
