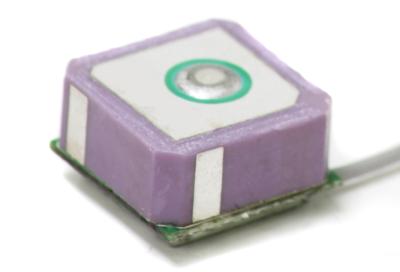

GPS OEM antenna with coaxial cable

This GPS OEM antenna comes in two versions (1 or 2 stage LNA)

The main difference this two GPS OEM antennas is the gain. The system gain of the antenna depends on the using of a one stage or two stage LNA.


Applications: POS, people tracking, animal tracking

GPS OEM antenna one stage LNA

• Frequency: 1575.42 MHz
• Bandwidth: ± 1,023 MHz
• Gain Patch: Typ. - 3 dB @ Zenith
• Gain LNA: Typ. 15 dB
• Noise figure: 1.8 dB max.
• VSWR <2
• Typ. 3 mA max. 5 mA (2.7~3.3V DC)
• Size: 11.5 x 10  x 10 (mm)
• 0,8 dia. mm coax cable, 50 mm, other on request

GPS OEM antenna two stage LNA

• Frequency: 1575.42 MHz
• Bandwidth: ± 1,023 MHz
• Gain Patch: Typ. - 3 dB @ Zenith
• Gain LNA: Typ. 25 dB
• Noise figure: 1.8 dB max.
• VSWR <2
• Typ. 10 mA max. 13 mA (2,7~3,3V DC)
• Size: 11.5 x 10  x 10 (mm)
• 0,8 dia. mm coax cable, 50 mm, other on request
