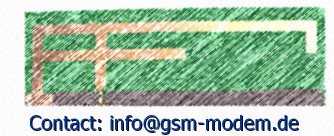

PCB Antenna

This GSM PCB antenna that covers all GSM bands 850 900, 1800, 1900, UMTS 2100 band

The PCB antenna can be used for UMTS  applications as well.

Ultra small size designed for tiny applications like burglar alarm, car alarm, telemetry boxes, POS terminals, remote Metering, vending machines

Technical data of this PCB antenna

• Supported band: GSM 824,900,1800,1900, UMTS 2100,
• Frequency  (MHz): 824~960,  1710~2170
• Impedance: 50 Ω
• Gain: 0 dBi
• Dimensions (mm):  66 x 25 x 0.8
• VSWR: 1.4 ~1.9 max.
