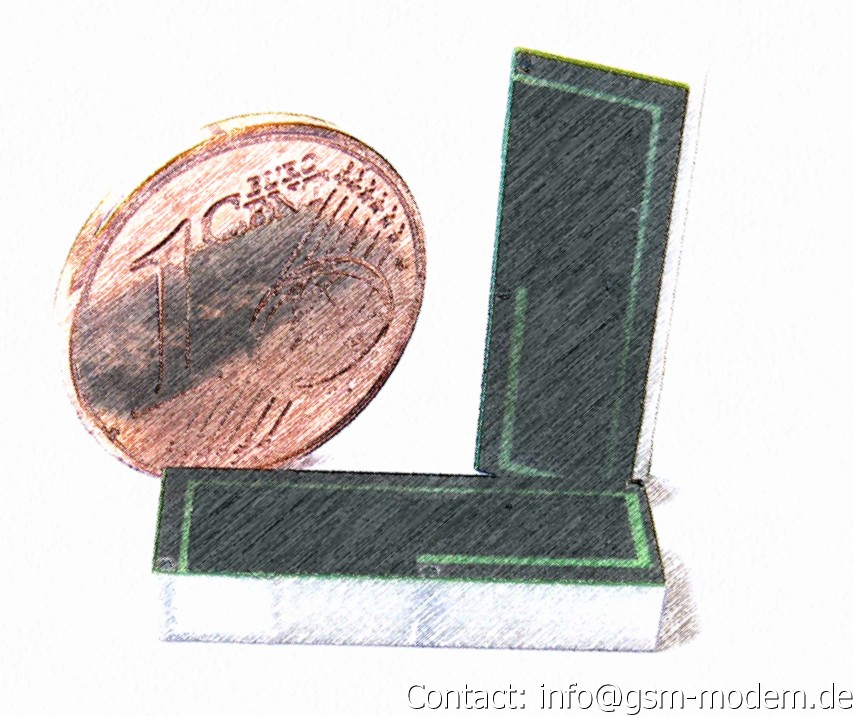

Integrated GSM Antenna

This integrated GSM antenna that covers GSM 900, 1800, 1900 and the UMTS 2100 band.

Ultra small size designed for tiny applications like small tracking devices (people, animals, assets), PDA, digital camera, mobile phones, GSM / GPS watch

Technical data of this integrated GSM antenna

• Supported band: GSM 900,1800,1900, UMTS 2100
• Frequency  (MHz): 860~960 1710~2170
• Impedance: 50 Ω
• Dimensions (mm): Ultra small 20.5 x 7 x 3.2
• Ground plane used (mm): 45 x 45
• VSWR: 2 max.
• Optimised for small ground plane
