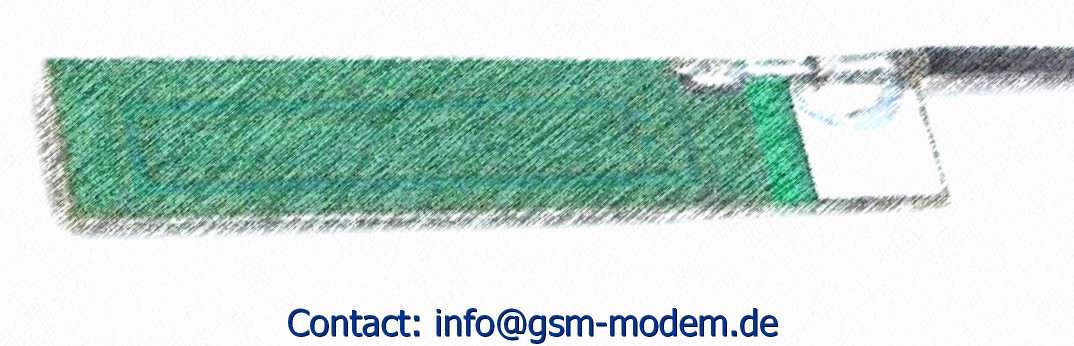

Internal GSM Antenna

This internal GSM antenna that covers all GSM bands 850, 900, 1800, 1900 and comes with 100 mm coaxial cable

For e.g. ultra small tracking devices (people, animals, assets), burglar alarm, car alarm

Technical data of this internal GSM antenna

• Supported band: GSM 850,900,1800,1900
• Frequency  (MHz): 824~960 1710~1990
• Impedance: 50 Ω
• Dimensions (mm): Ultra small 34 x 7 x 0.8
• Gain: 0 dBi in average
• VSWR: 4.9 (GSM 850), 1.3 (GSM 900), 2.2 (GSM 1800), 1.2 (GSM 1900)
• Band  antenna efficiency
• GSM 850,  15%
• GSM 900 , 19%
• GSM 1800,  45%
• GSM 1900,  39%
• Coaxial cable 100 mm with connector U.FL, GSC, MMCX/M RA, stripped end (other on request)
